A narrow aisle forklift is purpose-built for the Australian warehouse where every square metre matters. Hangcha Australia supplies three main types: the reach truck for full-pallet storage at height (lift up to 13,000 mm on the XC Series, capacity up to 3.0 t on the X Series 4-way), the order picker for piece-picking in retail and e-commerce fulfilment, and the turret truck (VNA) for guided aisles of about 1.6 to 2.0 m. Models are available with lithium-ion or lead-acid power and are supported from our warehouses in Melbourne, Sydney and Brisbane. Use the comparison table and selection guide below to find the right model for your aisle width and load profile.
Here you can send us an inquiry concerning general questions about Hangcha.
"*" indicates required fields
| Product | Loading Capacity (kg) | Lift Height (mm) | Service Weight (kg) | Turning Radius (mm) | Gradeability (%) | Travel Speed (km/h) |
|---|---|---|---|---|---|---|
| Reach Truck | 1000 – 3000 | Up to 13000 | 2440 – 4320 | 1460 – 1899 | 10 – 15 | 10.2 – 14 |
| Order Picker | 100 – 2500 | Up to 9500 | 1130 – 3960 | 1343 – 3130 | 5 – 10 | 5.5 – 10 |
| Turret Truck / VNA Truck | 1000 – 1588 | Up to 10415 | 5065 (man-down model) | 1975 – 2643 | 5 | 6 – 11 |
Ranges cover the models listed on this page. Reach truck turning radius starts at 1460 mm in 360° travel mode on the X Series all-directional model. Check each model's spec sheet for exact figures.
| Key metric | Hangcha Australia | What it means for you |
|---|---|---|
| Max lift height | 13 m on the XC Series 1.4–2.5 t reach truck | Reaches high-bay racking |
| Max capacity | 3.0 t on the X Series 4-way and all-directional reach trucks (lift to 8.5 m) | Heavy pallets and long loads in narrow aisles |
| Narrowest aisle (VNA turret) | About 1.6 to 2.0 m, guided | More racking rows per floor area, maximum storage density |
| Power | Lithium-ion or lead-acid, depending on model | Lithium: opportunity charging and no battery watering. Lead-acid: lower upfront cost. |
| Local presence | Warehouses in Dandenong South (VIC), Meadowbrook (QLD) and Smeaton Grange (NSW) | A local team to talk to before and after you buy |
| Parts and training | Genuine Hangcha parts stocked locally, operator training available | Less downtime and trained operators from day one |
| Manufacturer backing | Hangcha Group, founded in 1956, among the world's top 8 industrial truck makers | A large manufacturer behind the product for the long term |
Standard pallet racking up to about 13 m
→ Choose the XC Series 1.4–2.5 t reach truck, with lift heights from 2,700 to 13,000 mm.
Lighter pallets, lower racking, tight turns
→ Choose the XC Series 1.0–1.2 t reach truck, with a 1,515–1,595 mm turning radius and 14 km/h travel speed.
Double-deep racking
→ Consider the X Series pantograph reach truck. Pantograph reach is commonly used to reach the second pallet in double-deep racking, so tell us your rack depth and we'll confirm the fit.
Long loads such as timber, pipe or panels

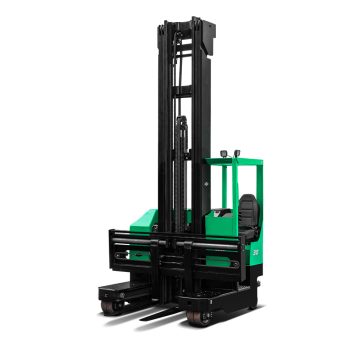

→ Choose the X Series 4-way or all-directional reach truck. Sideways travel mode carries long loads lengthwise down the aisle, with capacity up to 3.0 t.
Carton picking from upper rack levels
→ Choose the A Series high-lift order picker for pick heights from 4,500 to 9,500 mm, or a 700 kg or 1,000 kg medium-level order picker for racking up to about 5 m.
Floor-level case picking in grocery and retail distribution
→ Choose the A Series 2.5 t low-level order picker to build pallets from ground-level pick faces.
Small items from shelving in e-commerce fulfilment
→ Choose the storage assist vehicle or electric stock picker, with pick heights up to 3,700 mm.
Guided very narrow aisles, operator stays at floor level
→ Choose the A Series 1.2 t man-down turret truck, with lift heights from 5,000 to 10,000 mm.
Guided very narrow aisles, operator travels up with the load
→ Choose the turret stockpicker, rated to 1,000–1,588 kg with lift heights up to 10,415 mm.
